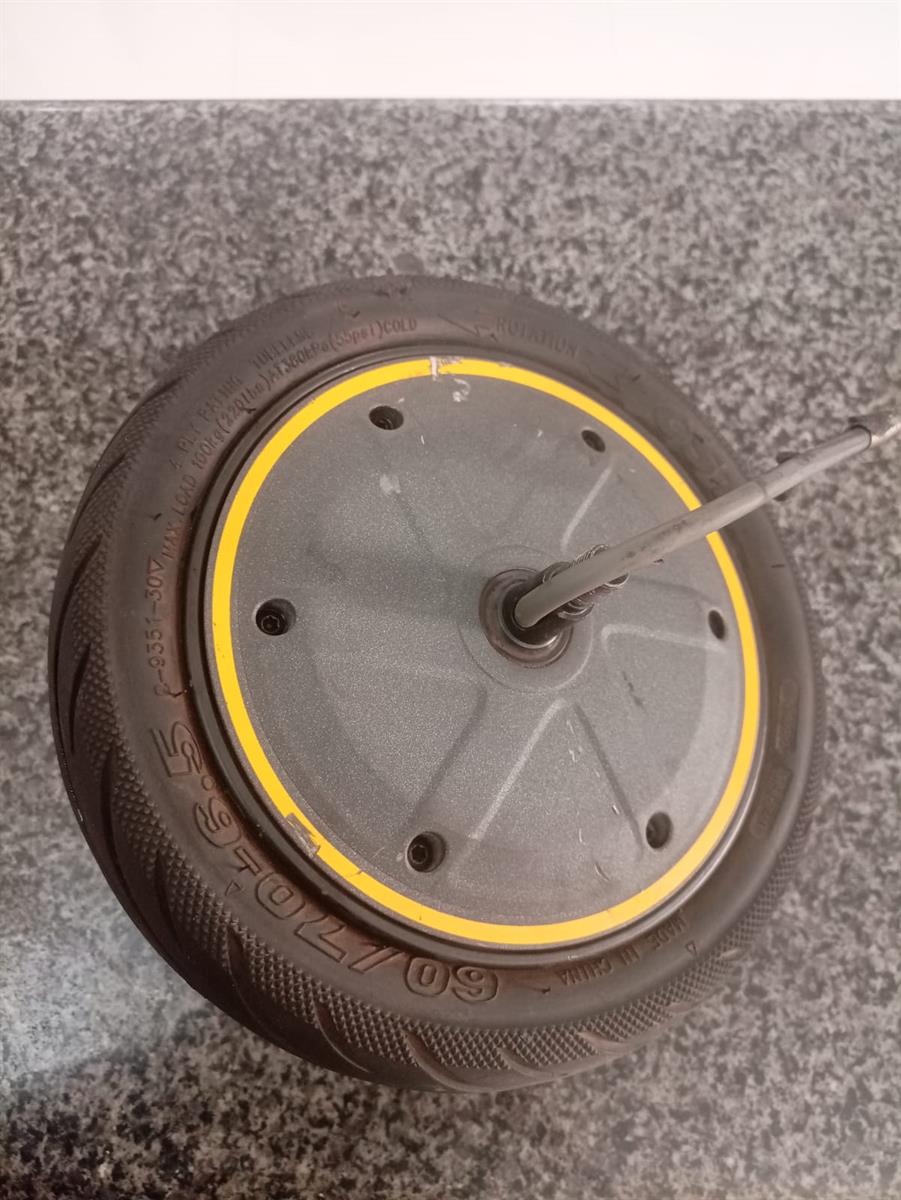

Hub Motor For E-Bike 350 Watts

General Specifications of a 350W BLDC Hub Motor

1. Power Output: 350 Watts
2. Voltage: Usually 24V, 36V, or 48V (depends on the model)
3. Current: Typically 7A - 15A depending on voltage
4. Speed (RPM): Ranges from 250 to 1000 RPM based on voltage and wheel size
5. Torque: Approx. 8-15 Nm (Newton-meters)
6. Efficiency: Around 80-90%
7. Hall Sensors: Available in some models (sensorless in others)
8. Wiring:
   • 3 thick wires for phase (U, V, W)
   • 5 thin wires for Hall sensors (if present)
9. Weight: ~3-5 kg
10. Wheel Size: Usually 10 inches - 16 inches, but can be larger

Key Features

• Brushless DC (BLDC) Motor: No brushes, meaning less maintenance and longer lifespan.
• High Efficiency: Converts more battery power into motion with less heat loss.
• Direct Drive or Geared: Some motors have internal planetary gears for higher torque.
• Regenerative Braking: Available in some models.

Common Applications

✅ E-Bikes
✅ Electric Scooters
✅ Wheelchairs
✅ DIY Electric Vehicles
